PAIN POINT

Complex program, high threshold programming, long learning time for operators.

‍When detect complex structures or defect, high wrong and under-reporting rate.

Weak ability to detect minor defects such as pin bending、warping.

Multi equipment shared program, having inconsistent coordinates, set program origin by manual.

Batch equipment needs to be debugged one by one, resulting in inconsistent test results and long debugging time.

SOLUTION MEASURES

· Programming only 5 minutes at the fastest.

Given an area, algorithm automatically recognizes and locks MARK points. Implement inexperienced operations, eliminating the need for manual adjustment of complex parameters.

· Stable and excellent mechanical structure.

Use cast iron gantry structure, ensuring precision and stability of machines.Y-axis use dual servo synchronous drive to reduce deformation and improve positioning precision.

· Multi scenario intelligent re-judgment to improve detection rate.

Re-judgment and maintenance station synchronously display 3D images, and the software interface synchronously display 2D+3D images, making defects nowhere to hide.

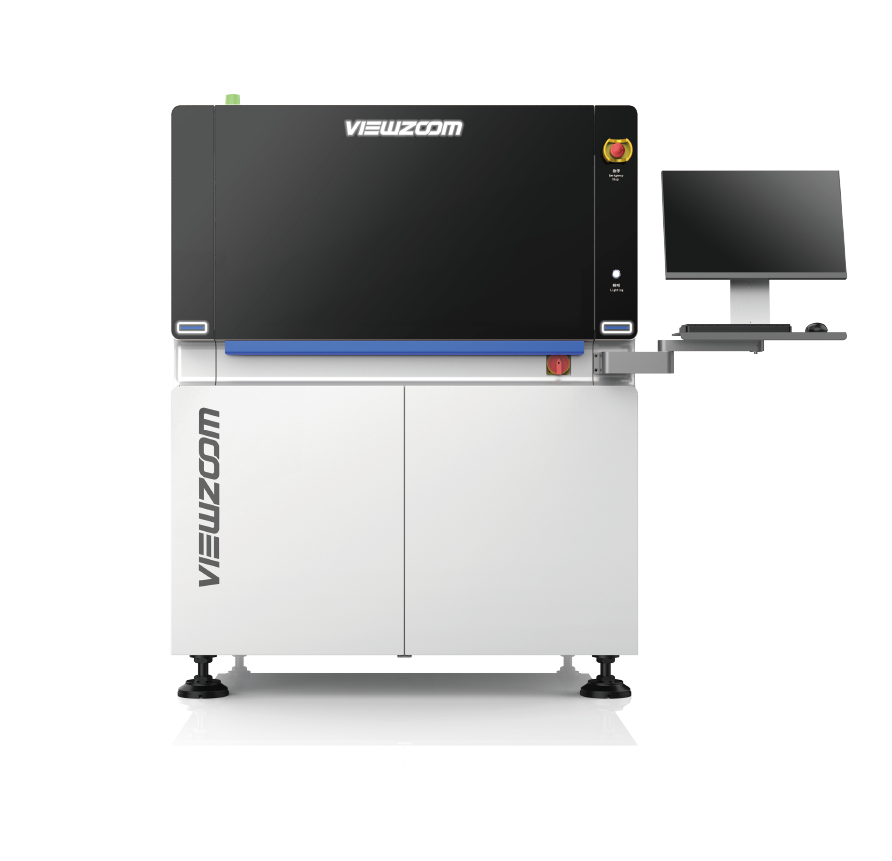

Aim at PCB board characteristics of consumer electronics, mainly small and medium-sized substrates, with many small components, multiple comprehensive characteristics of embedded devices, there is already high demand for detection precision. Venus series equipment has developed a targeted 4D optional, which can achieve full three-dimensional and dead angle detection, meeting the high-precision detection needs of customers.
